Water Softeners in Chicagoland, IL

Top Quality Water Conditioning System Featuring the Autotrol 255 Valve

tall blue water conditioning tanktall blue water conditioning tank

Water Softeners in Chicagoland, IL

Features:

  • 3/4″ ports
  • Flow rates to 15.5 gpm
  • Efficient valve design decreases water required for regeneration
  • Made with Noryl corrosion resistant material
  • 256 bypass valve included
  • All softeners listed below are built with a turbulator
  • Available with the all-new Logix time clock or on-demand controller
  • TESTED and CERTIFIED by the WQA to NFS/ANSI Standard 44 for water softener performance
  • TESTED and CERTIFIED by the WQA to NFS/ANSI Standard 372 for lead free compliance
  • The 255 valve is typically used in residential applications that require average flow rates

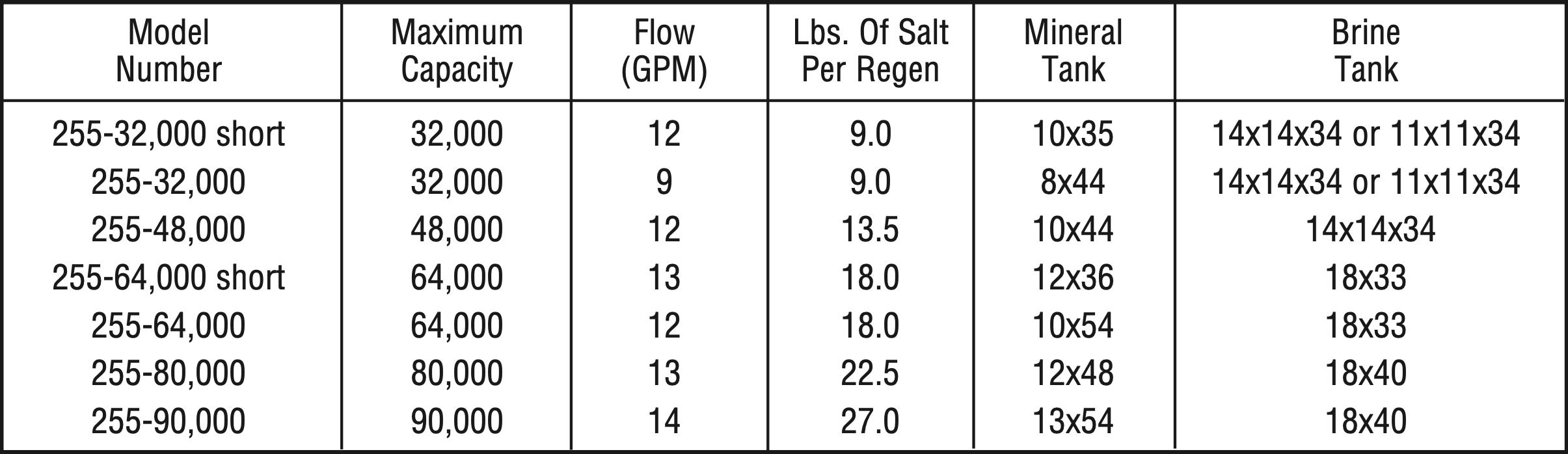

water conditioning info chart for the 255 valve

Johnson Water Conditioning brings homeowners the best choice and the logical choice in residential water treatment systems. If you’re looking for high performance, high-efficiency, and dependable water conditioners in Chicagoland, we’ve got the system for you. The new Logix series controllers for the Autotrol valves set the standard for achieving superior water treatment for you and your family.

————————————————————————————————————————————————————————————————————————

Top Quality Water Conditioning System Featuring the Autotrol 268 Valve

268-742_R_cover

Features:

  • 1″ ports
  • Flow rates to 25.0 gpm
  • High-flow performance reduces drop in water pressure
  • Efficient valve design decreases water required for regeneration
  • Constructed with durable Noryl corrosion resistant material for years of reliable operation
  • 1256 Performa bypass valve included
  • All softeners listed below are built with a turbulator
  • Available with the all-new Logix time clock or on-demand controller
  • TESTED and CERTIFIED by the WQA to NFS/ANSI Standard 44 for water softener performance
  • TESTED and CERTIFIED by the WQA to NFS/ANSI Standard 372 for lead free compliance
  • The 268 Performa valve is typically used in residential and light commercial applications that re-quire above average flow rates

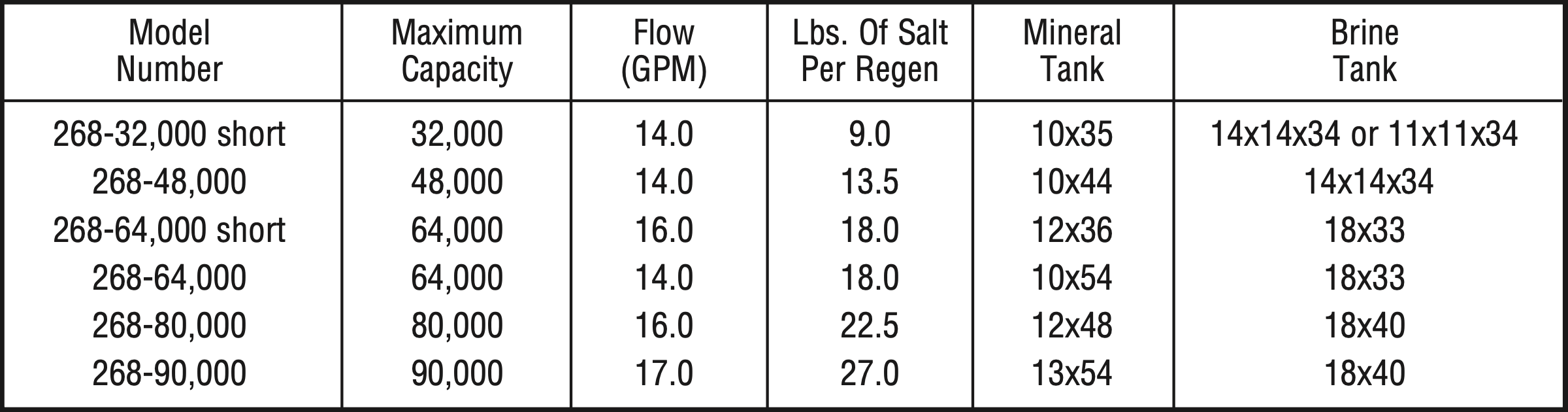

water conditioning info chart for the 268 valve

————————————————————————————————————————————————————————————————————————

The Ultimate Water Conditioning System in McHenry, Lake, Kane, Dupage, Cook and Will Counties.

We offer a full range of valve controllers to meet all residential water-conditioning applications.

Logix Series 740 Time Clock

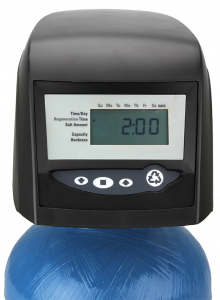

740 clock model

  • Simple, economic, electronic time clock operation
  • New, efficient 7-cycle regeneration sequence
  • 8-hour power back-up will maintain settings during a power failure
  • Manual override regeneration provides extra soft-water regeneration exactly when you need it
  • Safe 12-volt operation uses only $1.00 in electricity per year
  • No battery back-up required

Logix Series 760 On-Demand

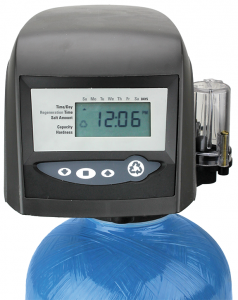

760 clock model

  • Simple, economic, electronic on-demand operation
  • Smart 28-day variable reserve feature learns your family’s water usage and adjusts to demand
  • Meters your water use and regenerates only when needed
  • Features “soft-water remaining” display
  • New, efficient 7-cycle regeneration sequence
  • Safe 12-volt operation uses only $1.00 in electricity per year
  • No battery back-up required

Designed for a lifetime of service, the high-strength inner liner is surrounded by a study filament-wound exterior. This product is tested and certified by the National Sanitation Foundation.

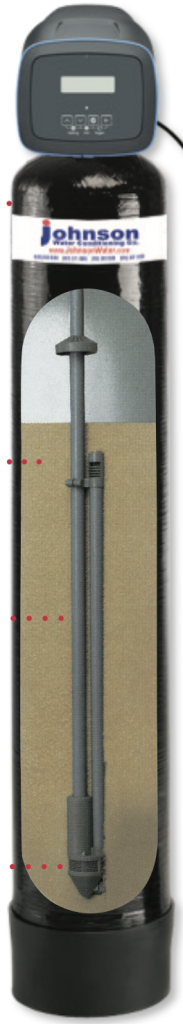

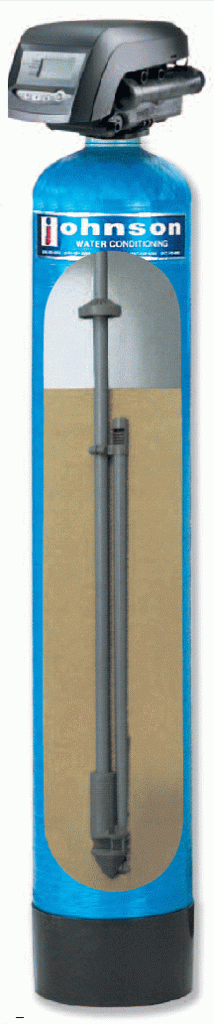

Tall, inner diagram of the tank

The high-capacity resin provides maximum softening capacity and is backed by a lifetime warranty.

It features full flow 1″ internal piping on every model.

The Turbulator, invented by Mr. Johnson, uses a water-stream compression device, which stirs up the softening media during the backwash cycle. Small particles of dirt and iron are scrubbed from the beads and flow to the drain. This increases iron removal and will enhance the softeners efficiency.

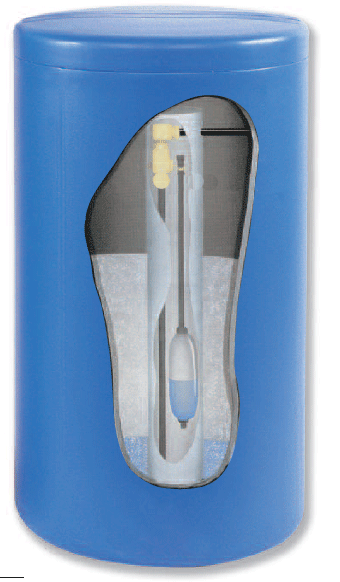

Safety Float Valve

Tough corrosion proof construction for a lifetime of use.

Our water conditioners in Chicagoland come with a 100% lifetime parts warranty.

Inner view of blue 255 valve tank

————————————————————————————————————————————————————————————————————————

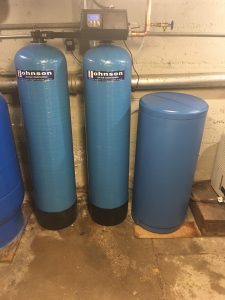

Introducing the Twin Tank 9100 Water Softener System That Delivers 24 Hour Per Day Soft Water.

 Water Softening Process

Hard water enters the water softener system. As it passes through the resin inside the tank, the hard water minerals are attracted to the resin and the water is softened to to service the home.

Regeneration ProcessWater filtration system

When the resin becomes saturated with hard water minerals, the water softener system goes automatically into regeneration. This is the process that frees the resin of hard water minerals, making it ready to soften the water again. Brine water is drawn into the tank and rinses the hard water minerals off the resin and down the drain. Once the resin is free of hard water minerals, soft water rinses the remaining brine water out of the system leaving the system ready for service.

Twin-Tank Advantage

A twin-tank system assures that there is always soft water available. The water softener system automatically switches the flow to the fresh second tank while the first tank is regenerating. Thus, the system always delivers soft water without interruption.

Twin tanks provide continuous soft water.

With a twin-tank system featuring the new Fleck 9100 valve, families benef it from soft water 24 hours a day, seven days a week. That’s because the second tank of soft water acts as a backup, ready to immediately provide soft water once 100% of the first tank is used. While the second tank is in service, the first tank regenerates, giving you all the advantages of continuous soft water.

Noryl material for added durability

Noryl® material

Noryl® material for added durability.

Manufactured from high-tech Noryl®* material, the 9100 valve has been engineered and tested to withstand the equivalent of 27 years of uninterrupted daily use. Also available in lead-free brass.

* Noryl ® is a registered trademark of the General Electric Company.



Fleck 9100 valve

Installing a twin-tank softener featuring the Fleck 9100 valve can save significant amounts of water and salt.

15% savings in both water and salt.

Unlike preset systems, the twin-tank system regenerates with soft water only when necessary. Plus it uses 100% of the tank in service. The end result? Fifteen percent savings in both water and salt.**

** Compared to a system with meter delayed regeneration and the reserve set at 30% of the system capacity, provided that half of the reserve capacity is unused.

Advanced SE Electronic Timer

Advanced SE Electronic Timer

3200 Mechanical Timer

3200 Mechanical Timer

Electronic or mechanical.

Your choice of the highly reliable 3200 mechanical timer or advanced SE electronic timer with easy programming and minimal parts.









Only pennies per day to operate.

Choose the SE electronic timer, and you’ll pay only $4.87 in electricity for the entire year. Choose the mechanical timer, and that cost is less than 25 cents per year!***

*** Based on one regeneration per day at $0.0745/kw.
